Chapter 3
DLS Interface Descriptions

High Level Interfaces

Purpose and Capabilities

The two high level DLS interfaces (IAddIn OLE Automation and DDE) provide very simple and often-used functions to interact with the DYMO Label Software application such as printing labels, loading/saving labels, changing text in the label objects, etc. Because of this, the main focus of these DLS interfaces is for writing small, simple programs. As examples of such programs, besides the samples included in this SDK the Word and Outlook Add-In’s both use the IAddIn Automation for their operation.

IAddIn OLE Automation

Introduction

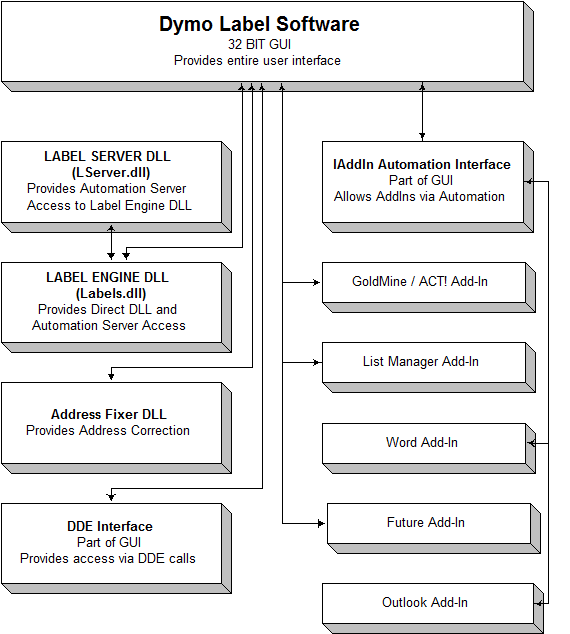

As is shown in the Figure on page 6, the IAddIn OLE Automation is part of the DLS application itself (the GUI). It operates as a universal out-of-process OLE Automation Server that provides integration with any OLE capable application. Its primary use is for simple label printing needs such as on demand address or bar code label printing.

Program ID info

IAddIn Automation exports two OLE Interfaces, IDYMOAddIn and IDYMOLabels. The OLE class names for these two Interfaces are:

DYMO.DYMOAddIn

DYMO.DYMOLabels

IDYMOAddIn implements functions that affect the program operation itself, whereas IDYMOLabels implements functions that pertain to the current label design itself.

IAddIn Methods and Properties

The IDYMOAddIn Interface provides the following program control functions:

Open (const FileName: WideString)

Opens a label file. Returns TRUE on success, FALSE on error.

Save ()
Saves the current label. Returns TRUE on success, FALSE on error.

SaveAs (const FileName: WideString)

Saves the current label under a new name. Returns TRUE on success, FALSE on error.

FileName This property returns the name of the currently open file.

Print(Copies: Integer; bShowDialog: WordBool)

Prints the current label. Copies is the number of copies to print. bShowDialog controls the display of the print-progress dialog. If TRUE, then the dialog will be displayed. Returns TRUE on success, FALSE on error.

Hide()
Hides the program, removing it from the taskbar.

Quit()
Shuts down the program. Use this with caution, this can cause Windows errors. It is best to let Windows start/stop the program.

Show ()
Shows the program, and brings it to the foreground.

SelectPrinter (PrinterName)

Redirects output to the selected printer. PrinterName is of the form “Printer name” on “Port.” Returns TRUE on success, FALSE on error.
Example:
To select the LabelWriter EL60 on COM3, you would use the command:
SelectPrinter(DYMO LabelWriter EL60 on COM3:)

SysTray (State: WordBool)

Places the program in the system tray when State is True, and removes it from the system tray if State = False.

The IDYMOLabels Interface provides the following functions for controlling the appearance of a label:

GetObjectNames (bVariableOnly: WordBool)

Returns a list of objects on the label. If bVariableOnly is TRUE, then the list will contain only those objects that can be pasted into. This includes Address, Bar code, and Text objects with the bVariable property set to TRUE. If bVariableOnly is FALSE, then all objects on the label will be returned. The vertical-bar ‘¦’ character separates each object in the list. Example: “Text¦Address¦Logo.” See DDE Fields description.

GetText (const Field: WideString)

Given an object name (Field), returns the contents of the object. This operation only applies to Address, Bar Code, and Text objects.

SetAddress (AddrIdx: Integer; const Address: WideString)

Given an index of an address object, places the text in the object. The index is normally 1, but for designs with more than one address object, the index may be greater than one to select other address objects. Returns TRUE on success, else FALSE.

SetField (const Field, Text: WideString)

Given an object name, and some text, changes the text of the object to have the new text. This operation only applies to Address, Bar Code, and Text objects. Returns TRUE on success, else FALSE.

POSTNET (Index: Integer; const Position: WideString)

Given an index of an address object, changes the POSTNET bar code setting for the object. The index is normally 1, but for designs with more than one address object, the index may be greater than one to select other address objects. Position may be “NONE,” “TOP,” or “BOTTOM.”

AddressFieldCount

This property returns the number of address objects on the current label. It can be used to determine possible values for the index parameter of the POSTNET and SetAddress functions.

DDE (Dynamic Data Exchange)

Introduction

DDE always involves two applications: a Client (your own application) and a Server (DLS). Using DDE, your application sends data and commands to the DLS application, in effect operating DLS via remote control. In all cases, you will be using the DLS application as the Server and adding DDE Client capabilities to your application.

The DLS interface using DDE provides similar label printing capabilities to that provided by IAddIn Automation. Its primary use is for simple label printing needs such as on demand address or bar code label printing.

Using DDE With DLS

DDE commands are all executed using DDE Execute commands. Prior to sending an execute command to the server, the Status item must be in the ‘Ready’ state. If the Status is not in the ‘Ready’ state, all commands sent to the server will be ignored.

Multiple DDE commands may be combined, up to a maximum string length of 255 characters. Multiple commands may be separated by commas. For example, the command string:

Open(MYFILE.LB0), Paste(Address), print, hide

will open the label file MYFILE.LB0, paste the clipboard’s contents into an object on the label called ‘Address’, print the label, and then hide the application.

DDE commands sent to DLS may use carriage return/line feed characters (decimal 13,10) or “Pipe” characters (‘¦’, decimal 124) to indicate line breaks. For example, to set an object called Address to contain the text:

Acme Industries

123 Main St.

Anytown, CA 99812-1234

You would send the command:

SetObjectText (Address, Acme Industries¦123 Main St.¦Anytown, CA 99812-1234)

System/Topic/Items info

To establish a DDE conversation, the DDE client must specify an Application or Service Name and a Topic. If the server application is running, the conversation is established. If not, applications must launch the server application and try again.

Executable Name: DYMOLBL.EXE

DDE Application/Service Name DYMO

DDE Topic Name SYSTEM

The path to the executable can be found in the Registry at HKEY_LOCAL_MACHINE\SOFTWARE\Dymo-CoStar\LabelWriter\InstallPath

The DYMO Label Software responds to the following DDE items:

Status Returns current DDE status as a string. The returned string will be either ‘Busy’ or ‘Ready.’

The Status item is used to check the current status of the DYMO Label program. When the program is ready to accept new commands, a DDE Request of the Status item will return ‘Ready.’ When the program is processing a command, a DDE Request of the Status item will return ‘Busy.’ When the program is done processing a command, the DDE Request will once again return ‘Ready.’

Fields Returns a list of the names of all objects on a label as a null-terminated string. The object names are separated by the “Pipe” character, (‘¦’, decimal 124) and the last character is followed by a null (decimal 0). For example, a typical shipping label with a return address and logo would return the following when it receives a request of the Fields item:

RETURN ADDRESS¦LINE¦LOGO¦ADDRESS

LastError When a command fails, the LastError item returns a descriptive (but brief) textual error message and the Status reverts to Ready. If the LastError item is read while the status is Busy or Ready, it returns ‘No error.’ Other possible error codes include:

Error Message	Meaning
Command error	The format of the command string was incorrect.
Open file error	The Open command specified a file that was not found.
Print error	An error occurred while trying to print the label.
Object not found	A Paste or SetObjectText command specified an object that was not found on the label.
Unknown Command	The command was not found, or was syntactically wrong.

NOTE: All strings (label object names, text, number of copies, filenames, etc.) are represented by standard C-style null-terminated strings. If you are using Delphi, you may need to use the StrPCopy () procedure to convert a Pascal string to a null-terminated string.

DDE Commands

The following list represents all available DDE commands. The commands are all performed using the DDE Execute command of the client application.

Exit Shuts down DLS. If the template has been modified via DDE calls, the user is NOT prompted to save changes to the file.

Maximize Maximizes DLS to full screen

Minimize Minimizes DLS to an ICON.

MiniTool Minimizes DLS to the System Tray.

Restore Restores DLS to normal size.

Hide Hides the DLS program.

Show Shows the DLS program if it was hidden.

Print Prints the current label, as is.

Copies(nCopies) Sets the number of copies of a template to be printed.
Example:
Copies(4)

Open(FileName) Opens the specified label file.
Example:
Open(C:\LABELS\\MYLABEL.LB0)

Paste(ObjectName) Pastes the text from the clipboard into the specified object’s text property. If the object has no text property, the command is ignored.
Example:
Paste(Address)

SetObjectText(Object Name, Text) Similar to the Paste command, except the text in the object is specified as part of the command.
Example:
SetObjectText(Text," + rst![ProductName] + ")"SelectTemplate(TemplateName)

Opens a template file. This is equivalent to picking a new template from the drop-down list. The “TemplateName” parameter must match the entire name as it appears in the drop-down list. The Template Name is not case sensitive.
Example:
SelectTemplate(Shipping, UPS (30258))

SetImageFile(ObjectName, FileName)

Replaces the specified graphic object’s image with an image read from the specified file. The file name should contain the complete drive and path information for the file.
Example:
SetImageFile(Logo, C:\CLIPART\MYLOGO.PCX)

PastePicture(ObjectName)

Copies an image from the clipboard into the specified picture object.
Example:
PastePicture(Photograph)

SelectPrinter(Name) Redirects output to the selected printer. Name is of the form “Printer name” on “Port.”
Example:
To select the LabelWriter EL60 on COM3, you would use the command:
SelectPrinter(DYMO LabelWriter EL60 on COM3:)

POSTNET(nSetting) Modifies the POSTNET bar code setting for all addresses on a label. nSetting may be 0, 1, or 2, and sets the position of the POSTNET bar code as follows:
0 = No bar code
1 = Print bar code above the address
2 = Print bar code below the address
Example:
Postnet(1)

Low Level Interfaces

Purpose and Capabilities

The low-level DLS interfaces provide developers full control of the label printing process. Printing, saving, loading labels; Creating new ones and modifying existing ones; Access to any properties of any object on the label – all these can be done using any of low-level DLS interfaces. This type of DLS interface was even used to write user-interface components of DLS itself.

ILabelEngine OLE Automation

Introduction

As is shown in the Figure on page 6, ILabelEngine OLE Automation is implemented in the Label Server DLL (LSERVER.DLL). This DLL operates as an in-process (in-proc) OLE Automation Server that provides integration with any OLE capable application. ILabelEngine Automation is far more powerful (and trickier to use) than IAddIn Automation. It is targeted for those needing to have complete control over the design, printing and preview of labels. If your application requires on-the-fly label design, then this DLS interface is appropriate. If all you need to do is open a label file change the contents of an object, and print it, then it is recommended that you use IAddIn Automation instead.

Program ID info

Because of the high level of control provided by this Automation Server, it exports a number of OLE Interfaces as shown in the table below, all of which are accessible via the ILabelEngine Interface.

Interface Name	OLE Class Name
ILabelEngine	DYMO.LabelEngine
ILblInfo	DYMO.LblInfo
ILabelList	DYMO.LabelList
IObjectsAtEnum	DYMO.ObjectsAtEnum
IObjectList	DYMO.ObjectList
IVarObjectList	DYMO.VarObjectList
ITextAttributes	DYMO.TextAttributes
IPrintObject	DYMO.PrintObject
ILabelObject	DYMO.LabelObject
ITextObj	DYMO.TextObj
IAddressObj	DYMO.AddressObj
IGraphicObj	DYMO.GraphicObj
IRectObj	DYMO.RectObj
ILineObj	DYMO.LineObj
ICounterObj	DYMO.CounterObj
IBarCodeObj	DYMO.BarCodeObj
IDateTimeObj	DYMO.DateTimeObj

Object Model

The Object Model for the Label Server DLL is shown in the two figures that follow:

Figure 2

Figure 3

The descriptions of the OLE Interfaces provided by the Label Server DLL are as follows:

ILabelEngine

This is the main Interface. The methods and properties supported by this interface apply to entire label designs, and include such things as Open, Save, Print, etc.

This Interface is also used to return the ILabelList Interface for the collection Object, the ILblInfo Interface with label specific information, and the IPrintObject Interface for label object level manipulations.

Properties and Methods:

Zoom This Read/Write Integer property is used for setting the ZOOM level percentage used when rendering a label on screen using the DrawLabel method. The value set must be between 20 and 400, inclusive.

Shadow This Read/Write Boolean property is used for turning the label shadows on and off when drawing a label on-screen. If the value is TRUE, then shadows will be added. After this value is written, the bitmap used for rendering the label is resized, so the LabelInfo.BitmapWidth and BitmapHeight values should be reread.

NewLabel(LabelType: String)

This method is used for creating a new label design. It takes a single parameter, LabelType, which must correspond to one of the strings returned via the LabelList collection Object. Returns TRUE on success, FALSE otherwise.

OpenFile(FileName: String)

Used to read a pre-existing label file. Filename is the name (with optional drive and path information) of the file to be read. If no drive or path is given, the current directory is used. Returns TRUE on success, FALSE otherwise.

SaveFile(FileName: String)

Saves the current label. Filename is the name (with optional drive and path information) of the file to be read. If no drive or path is given, the current directory is used. Returns TRUE on success, FALSE otherwise.

PrintLabel(DeviceName: String, Port: String, Quantity: Integer, bShowDialog: Boolean)

Used to print the current label. DeviceName is the name of the device (e.g. “DYMO LabelWriter Turbo”). Port is the port on which the printer is connected. If “File:” then output will be directed to a file. Quantity is the number of copies to be printed, and bShowDialog is a boolean used to display (TRUE) or hide (FALSE) the print progress dialog. Returns TRUE on success, FALSE otherwise.

Output(DC: Integer) This method may be used to print a label to a selected device context. Returns TRUE on success, FALSE otherwise.

OutputXY(X,Y,DC: Integer)

This method is used to print the current label on the passed device context, OFFSET by X and Y TWIPS. This is especially useful for “rubber Stamping” the same label multiple times on a sheet of labels. To do this, retrieve the DC of the printer, and call BeginDoc. Then, call this method once for each label on a sheet, passing the X and Y coordinates for each of the labels. When done, call EndDoc. Returns TRUE on success, FALSE otherwise.

DrawLabel(DC: Integer)

Use this method to draw the label on-screen with the current shadow and zoom properties. DC is the device context of the window in which to draw the label.

LabelNames This method returns an Interface to the ILabelList collection Object used to retrieve the names of all labels defined in the DEF file. (See Ref).

LabelInfo This method returns an Interface to the ILblInfo Object. (See Ref).

PrintObject This method returns an Interface to the IPrintObject Object. (See Ref).

ILabelList

This Interface to the collection Object is used to obtain a list of all supported labels. This list of labels is defined in the LABELS.DEF file. The Interface uses the IEnumVariant Interface to support the Count and Item properties.

Properties and Methods:

Count Read Only. Returns the number of label definitions available.

Item(Index: Integer)

Read Only. Returns the name of the given label definition.

ILblInfo

This Interface has properties that can be used to obtain information about a given label, including its size, name, paper type, etc. All properties are read only.

Properties and Methods:

LabelName The name of the label (from the DEF file). E.g. “Address Label (30252).”

PaperName The name of the paper that will be selected when this label is being printed.

Paper Width The width of the paper, in TWIPS.

PaperHeight The Height of the paper, in TWIPS.

BitmapWidth The width of the bitmap used to render the label on screen, in PIXELS.

BitmapHeight The height of the bitmap used to render the label on screen, in PIXELS.

Modified TRUE if the label has been modified by the user, else FALSE.

IPrintObject

This Interface is used for obtaining information about objects on a label. Many of the properties and methods take an object ID. These object ID’s may be obtained by the ObjectAt, ObjectsAt, FindObj, or AddObject methods.

Properties and Methods:

ObjectsAt(x,y: Integer)

This method returns an Interface to the IObjectsAtEnum collection Object. (See below). It is used to get the ID’s of all objects that include a given point on the label, as might be required when the user is trying to select a particular object. X any Y are expressed as offsets from the upper left corner of the label, in TWIPS.

Objects: IObjectList

This method returns an Interface to the IObjectList collection Object. (See below). It may be used to get the ID’s of all objects on a label.

LabelObject(Obj: Integer)

This is used to return an ILabelObject Interface of an object on the label with the ID of Obj. (See below).

FindObj(Name: String)

Returns the ID of the object with the name Name. If the object is not found, returns 0.

ObjectAt(X,Y: Integer)

Returns the ID of the top-most object on the label at point X, Y (in TWIPS). If no object is at the point, returns a 0. Not to be confused with ObjectsAt(x,y).

BringToFront(Obj: Integer)

Moves the object with the given ID to be on top of, or in the foreground, of all other objects on the label.

Delete(Obj: Integer)

Deletes the object with the ID of Obj.

SendToBack(Obj: Integer)

Moves the object with the given ID to be on below, or in the background, of all other objects on the label.

AddObject(ObjType: Integer, Name: String; X,Y, Width, Height: Integer; Rotation: Integer

This method is used to create a new object on the label. ObjType is an integer that specifies the type of object to be created, where:
0 – TEXT
1 – ADDRESS
2 – GRAPHIC
3 – RECTANGLE
4 – LINE
5 – BARCODE
6 – COUNTER
7 – DATE_TIME

Name is the descriptive name to give the object (e.g. “Return Address” or “Logo”, or “Product ID”, etc.)

X, Y, Width, and Height are the location (X,Y) of the upper left corner of the object, along with the dimensions of the object, all expressed in TWIPS.

Rotation is the rotation to apply to the object, and must be 0, 90, 180, or 270. This value is ignored when adding line or rectangle objects.

After adding an object, the LabelObject method can be used to provide the object-specific settings for the newly created object.

This function returns the ID for the new object, or 0 if the object could not be added.

IObjectsAtEnum

This collection Object may be used to obtain the ID’s of all objects on a label that contain the point X,Y in Twips. It uses the IEnumVariant Interface to support the Count and Item properties.

Properties and Methods:

Count Read Only. Returns the number of objects that contain the point.

Item(Index: Integer

Read Only. Returns the ID of the object.

IObjectList

This collection Object may be used to obtain the ID’s of every object on a label. It uses the IEnumVariant Interface to support the Count and Item properties.

Properties and Methods:

Count Read Only. Returns the number of objects that are on the label.

Item (Index: Integer)

Read Only. Returns the ID of the object.

IVarObjectList

This collection Object may be used to obtain the ID’s of every object on a label that can be pasted into. It uses the IEnumVariant Interface to support the Count and Item properties.

Properties and Methods

Count Read Only. Returns the number of variable objects on the label.

Item (Index: Integer)

Read Only. Returns the ID of the object.

ILabelObject

This Interface is used to obtain specific information about an object on a label, including its name, size, rotation, type, and more. It is supported by all object-specific Interfaces, and can be obtained via a QueryInterface call on ITextObj, IAddressObj, IGraphicObj, IDateTimeObj, IRectObj, ILineObj, and ICounterObj Interfaces. Likewise, after checking the type property of a ILabelObject, one can use QueryInterface to obtain the actual object Interface.

Properties and Methods:

ObjType Read Only. Returns the type of object the LabelObject corresponds to. Possible values are:
0 – TEXT
1 – ADDRESS
2 – GRAPHIC
3 – RECTANGLE
4 – LINE
5 – BARCODE
6 – COUNTER
7 – DATE_TIME

Name Read/Write. This is the descriptive name of the object..

X Read/Write. Sets the left edge of the object, relative to the paper, in TWIPS.

Y Read/Write. Sets the top edge of the object, relative to the paper, in TWIPS.

Width Read/Write. Sets the width of the object, in TWIPS

Height Read/Write. Sets the height of the object, in TWIPS.

Rotation Read/Write. Sets the rotation of the object, in degrees. Must be 0, 90, 180, or 270. Ignored by Line and Rectangle objects.

ITextAttributes

This Interface is available from the Text, Address, DateTime and Counter Interfaces. It is used to manipulate the text, fonts, justification, and other rendering attributes for the objects.

Properties and Methods:

Text Read/Write. This is the string displayed by Text and Address objects. This property is ignored by the Date/Time and Counter objects.

Font_1 Read/Write. This is the font name, style, and size used for the first line of text in an object. Fonts are represented by strings in the following form:

“<Font Name>, <Size>, <Style(s)>”

Example: “Times New Roman, 12, Bold”

Styles may be any combination of Bold, Italic, Underline, and Strikeout

Font_2 Read/Write. Used only by the Text and Address objects, this provides the font for subsequent lines of text. This property is ignored by the Date/Time and Counter objects.

Justify Read/Write. Provides access to the justification setting for the text, where:

0 = Left Justify
1 = Center Justify
2 = Right Justify
3 = Center Block

VJustify Read/Write. Provides access to the vertical justification. It can be any of:

0 = Justify to top of bounds
1 = Center between top and bottom
2 = Justify against bottom of bounds

Mirrored Provides access to mirrored text setting for the object, where:

FALSE = Print Normally
TRUE = Print text mirrored across Horizontal axis (or vertical axis if rotated 90 or 270 degrees).

Vertical Provides access to the Vertical Text setting of the object, where:

FALSE = Print Normally
TRUE = Print each letter on a line by itself.

When TRUE, only the first line of the text will be printed. All subsequent text will be ignored.

TextColor Read/Write. Provides access to the color of the text

BackgroundColor Read/Write. Provides access to the background color of the object

ITextObj

This is the Interface used to manipulate Text objects. The ITextObj Interface must be obtained via a QueryInterface on a ILabelObject Interface with the Type property = Text.

Properties and Methods:

TextAttributes Returns an ITextAttributes Interface.

IsVariable

Read/Write. This boolean property is used to tag an object as one that can be pasted into. If True, then the object may be pasted into programmatically. If False, the object can only be changed via direct editing.

IAddressObj

This is the Interface used to manipulate Address objects. The IAddressObj Interface must be obtained via a QueryInterface on a ILabelObject Interface with the Type property = Address.

Properties and Methods:

TextAttributes Returns an ITextAttributes Interface.

BarCodePosition Read/Write. Used to set the position for the POSTNET bar code, where:

0 = Suppress POSTNET printing for this object
1 = Print POSTNET above the address
2 = Print POSTNET below the address

b9DigitOnly Read/Write. If this property is TRUE, then POSTNET bar codes will only be printed for addresses with full 9 digit (ZIP+4) codes. If FALSE, then 5 and 9 digit POSTNET bar codes will be printed. When printing 9 digit ZIP codes, the full 11 digit Delivery Point Bar Code (DPBC) will be printed.

IGraphicObj

This is the Interface used to manipulate Graphic objects. The IGraphicObj Interface must be obtained via a QueryInterface on a ILabelObject Interface with the Type property = Graphic.

Properties and Methods:

FileName Read/Write. Provides the name of the bitmap file to displayed.

BitmapHandle Read/Write. Provides the handle of the bitmap to be displayed by the object.

PaletteHandle Read/Write. Provides the handle of the palette to be used in association with the bitmap handle.

WindowHandle Write only. Provides the handle of a window to be captured for display by the object.

Border Sets the type of border to draw around the image, where:

0 = No Border
1 = Thin Border
2 = Thick Border

BorderColor Read/Write. Provides access to the color of the object’s border.

GraphicSource Read/Write. Is used to specify the type of bitmap being passed to, or returned from the object. Possible values include:

0 = Source image is a file on disk. FileName has the full path to the file

1 = Source image is a bitmap or metafile whose handle is in the Picture field. If Picture corresponds to a bitmap (GetObjectType(Picture) = OBJ_BITMAP) then Palette represents the palette of the bitmap. If the object type is a metafile, then Palette is undefined.

2 = Source image is to be captured from the Window whose handle is contained in Window. (Valid only on Setting the attributes for the object. Once captured, the image information is returned as a bitmap handle in the Picture field.)

3 = Source image is in Clipboard. (Valid only on Setting the attributes for the object. Once captured, the image information is returned as a bitmap (or metafile) handle in the Picture field.).

GrabClipboard The method is used to load an image from the clipboard.

ILineObj

This is the Interface used to manipulate Line objects. The ILineObj Interface must be obtained via a QueryInterface call on a ILabelObject Interface with the Type property = Line.

Properties and Methods:

Orientation This Read/Write property provides the orientation of the line, where:

0 = Horizontal Line
1 = Vertical Line

Thickness This Read/Write property provides the thickness of the line, where

0 = No Line – 0 TWIPS
1 = Thin Line – 15 TWIPS
2 = Medium-Thin – 30 TWIPS
3 = Medium Line – 45 TWIPS
4 = Medium-Thick – 80 TWIPS
5 = Thick Line – 115 TWIPS

LineColor Read/Write. Provides access to the color of the line

IRectObj

This is the Interface used to manipulate Rect objects. The IRectObj Interface must be obtained via a Query Interface on a ILabelObject Interface with the Type property = Rectangle.

Properties and Methods:

Border Sets the style of border to draw around the image, where:

0 = No Border
1 = Thin Border
2 = Thick Border

bFilled Read/Write. If TRUE then the rectangle is filled by the color specified by the FillColor property.

FillColor Read/Write. If the bFilled property = TRUE then this specifies the color to fill by, otherwise ignored.

BorderColor Read/Write. Provides access to the color of the border.

IBarCodeObj

This is the Interface used to manipulate Bar Code objects. The IBarCodeObj Interface must be obtained via a Query Interface on a ILabelObject Interface with the Type property = BarCode.

Properties and Methods:

Text Read/Write. Provides the data to be formatted. This string can be up to 255 characters in length.

Font Read/Write. This string represents the font to be used for the Human readable text. For format information, see the Font_1 description for the ITextAttributes Interface.

TextPos Read/Write. The position where the Human Readable text is to be printed. Possible values include:

0 = No text printed
1 = Above the bar code
2 = Below the bar code

BCType Read/Write. Provides the type of bar code to be printed. Supported types include:
0 = Code 39 (Code 3 of 9)
1 = Code 39 w/Mod 43 Checksum
2 = Code 128 Auto
3 = Code 128A
4 = Code 128B
5 = Code 128C
6 = Code 2 of 5
7 = UPC A
8 = UPC E
9 = EAN 8
10 = EAN 13
11 = Codabar
12 = POSTNET
13 = Code 39 Library Version L – R Checksum
14 = Code 39 Library Version R – L Checksum
15 = Codabar Library Version L – R Checksum
16 = Codabar Library Version R – L Checksum
17 = ITF-14
18 = EAN-128

Size Read/Write. Provides the size of the bar code to be printed. The library supports three sizes, and they may be selected as follows:

0 = Small
1 = Medium
2 = Large

Justify Read/Write. Provides the horizontal justification of the bar code within its object bounds. It can be any of:

0 = Left Justify
1 = Center Justify
2 = Right Justify

Link If zero, then the data to be bar coded is taken from the Text field of the bar code object. If non-zero, then it the data to be bar coded is taken from the object with an ID that corresponds to the Link value. If non-zero, then the Link value must be the ID of a Text, Address, or Counter object.

ICounterObj

This is the Interface used to manipulate Counter objects. The ICounterObj Interface must be obtained via a Query Interface on a ILabelObject Interface with the Type property = Counter.

Properties and Methods:

TextAttributes Returns an ITextAttributes Interface.

PreText Read/Write. Provides the text (if any) to appear before the counter value. This must be no more than 31 characters in length.

PostText Read/Write. Provides the text (if any) to appear after the counter value. This must be no more than 31 characters in length.

Start Read/Write. This integer provides the value the counter starts counting from.

Current Read/Write. This is the current value of the counter. It is incremented each time the label is printed.

Width Read/Write. Specifies the minimum width to format the counter to.

Increment Read/Write. This integer value specifies the amount to increment the Current value by after each label is printed. To count down, this value should be negative.

UseLeadingZeros Read/Write. If TRUE, then the value is printed with leading zeros added to pad the width out to Width. Otherwise, no padding is used.

IDateTimeObj

This is the Interface used to manipulate DateTime objects. The IDateTimeObj Interface must be obtained via a Query Interface on a ILabelObject Interface with the Type property = DateTime.

Properties and Methods:

TextAttributes Returns an ITextAttributes Interface.

PreText Read/Write. Provides the text (if any) to appear before the counter value. This must be no more than 31 characters in length.

PostText Read/Write. Provides the text (if any) to appear after the counter value. This must be no more than 31 characters in length.

Format Read/Write. Provides the format to be used for the date and time. Available choices include both US, and international standards. Possible values for Format include:

0 = Blank
1 = Friday, February 6, 1998
2 = Friday, 6 February, 1998
3 = February 6, 1998
4 = 6 February, 1998
5 = 2/6/1998
6 = 6/2/1998
7 = 2/6/98
8 = 6/2/98
9 = 2.6.98
10 = 6.2.98
11 = 1998-02-06
12 = 1998-06-02
13 = 6-Feb-98
14 = Feb 6, 1998

IncludeTime Read/Write. If TRUE, then the time will be added after the date. If False, then only the date will be printed.

b24Hour Read/Write. If TRUE, then the time will be printed as 24-hour time (0-23), otherwise, it will be printed as 12 hour (1-12) time.

DLL Calls

Introduction

The LABELS.DLL file provides the DLS interface for using DLL calls. This label engine DLL may be used from any language that supports Windows DLL calls. Like the low-level OLE DLS interface, the DLS interface using DLL calls is far more complex than the DLS interfaces using IAddIn Automation and DDE and is targeted at those needing to perform complex label printing tasks.

Calling Conventions

All DLL calls use the standard windows calling conventions (_stdcall). Parameters are passed from right to left, and the called function is responsible for cleaning up the stack.

All functions that use string parameters use C-Style, null-terminated strings.

DLL Data Structures

Structures are given in both ‘C’ and Pascal formats. These data structure definitions, as well as function prototypes and other useful type definitions are defined in the lbltypes.h and lbltypes.pas files that are included as part of the SDK.

TLabelInfo

The TLabelInfo structure is used to get information about the current label.

C definition:

typedef struct tagLABELINFO {

char LabelName[64];

char PaperName[64];

POINT PaperSize;

POINT BitmapSize;

int LabelCount;

POINT LabelSize;

} TLABELINFO;

typedef TLABELINFO * PLABELINFO;

Pascal definition:

TLABELINFO = Record

LabelName : Array[0..63] of char;

PaperName : Array[0..63] of char;

PaperSize : TPoint;

BitmapSize : TPoint;

LabelCount : Integer;

LabelSize : TPoint;

End;

PLABELINFO = ^TLabelInfo;

Where:

LabelName Is a null-terminated string giving the name of the label (e.g. ‘Address Label,’ or ‘2-up Address Label’)

PaperName Is a null-terminated string giving the name of the paper stock this label is designed for (e.g. ‘Address’). These names correspond to names of papers known by the printer driver.

PaperSize This gives the X and Y extends of the paper, in TWIPS.

BitmapSize This gives the size of the bitmap required to hold the drawn label at the current Zoom level. The dimensions given are in Pixels.

LabelCount Normally one, contains the number of labels per page.

LabelSize Contains the physical dimensions of the labels (in TWIPS). PaperSize provides the overall dimensions, but when there is more than one label per sheet, the label size can’t be determined. This entry provides the actual size of each label.

TObjectID

Object ID is a generic 32-bit handle. Internally, it points to the specific object. It is used when whenever a specific object is being referenced.

C definition:

typedef int TObjectID;

Pascal definition:

TObjectID = TObject;

TObjectInfo

This structure is when returning information about a specific object.

C definition:

typedef struct tagObjectInfo {

TObjectID ObjID;

Int ObjType;

char ObjName[64];

RECT Size;

int Rotate;

} TOBJECTINFO;

typedef TOBJECTINFO * POBJECTINFO;

Pascal definition:

TOBJECTINFO = Record

ObjID : TObjectID;

ObjType : Integer;

ObjName : Array[0..63] of char;

Size : TRect;

Rotate : Integer;

End;

POBJECTINFO = ^TOBJECTINFO;

Where:

ObjID Is a handle to the specific object. This can be passed to functions that manipulate objects, to modify, delete, move, or make other modifications.

ObjType Is an identifier that corresponds to the type of object. This read only field can be any of:

Object Type	Identifier
Text	0
Address	1
Graphic	2
Rectangle	3
Line	4
Bar Code	5
Counter	6
Date/Time	7

ObjName Is a null-terminated string giving the name of the object (e.g. ‘Return Address,’ or ‘Part Number’)

Size Is a RECT that provides the X,Y location of the upper left corner of the object, along with its width and height. All dimensions are in TWIPS.

Rotate Is one of ROTATE_NONE, ROTATE_90, ROTATE_180, or ROTATE_270. (These are defined as integers of 0, 90, 180, and 270).

TTextBlockAttributes

This structure is used for setting or retrieving information about the text that is displayed by Text and Address objects. With it, one can determine the fonts, text, justification, and other settings:

C definition:

typedef struct tagTTextBlockAttributes {

char * Text;

char Font1[64];

char Font2[64];

int Justify;

int VertJustify;

BOOL bMirrored;

BOOL bVerticalText;

COLORREF TextColor;

COLORREF BackgroundColor;

} TTextBlockAttributes;

typedef TTextBlockAttributes * PTextBlockAttributes;

Pascal definition:

TTextBlockAttributes = Record

Text : PCHAR;

Font1 : Array[0..63] of char;

Font2 : Array[0..63] of char;

Justify : Integer;

VertJustify : Integer;

Mirrored : BOOL;

VerticalText : BOOL;

TextColor : COLORREF;

BackgroundColor : COLORREF;

End;

PTextBlockAttributes = ^TTextBlockAttributes;

Where :

Text Points to the text to be displayed. This text is null terminated, and has CR/LF’s in it as line terminators.

Font1, Font2 Defines the font used for the first line of text (Font1), and subsequent lines of text (Font2). Fonts are represented by null terminated strings in the following form:

“<Font Name>, <Size>, <Style(s)>”

Example: “Times New Roman, 12, Bold”

Styles are any combination of Bold, Italic, Underline, and Strikeout.

Justify Sets the horizontal justification and controls the state of shrink-to-fit. It can be any of:

0 = Left Justify

1 = Center Justify

2 = Right Justify

3 = Center Block
The high-bit of this field is used to enable or disable shrink-to-fit for the text. If the high bit is non-zero then shrink-to-fit is disabled, otherwise, it is enabled. To disable shrink-to-fit, or this value with 0x80000000.

VertJustify Sets the vertical justification. It can be any of:

0 = Justify to top of bounds

1 = Center between top and bottom

2 = Justify against bottom of bounds

Mirrored Used to force text to print mirrored across axis

FALSE = Print Normally

TRUE = Print text mirrored across Horizontal axis (or vertical if rotated 90 or 270 degrees).

VerticalText Used to print text vertically.

FALSE = Print Normally

TRUE = Print each letter on a line by itself.

TextColor Provides the color to be used for the text characters.

BackgroundColor Provides the color to be used to fill in the background of the object.

TAddressAttributes

This structure is used for setting or retrieving information about an Address object:

C definition:

typedef struct tagTAddressAttributes {

PTextBlockAttributes TextInfo;

int BarCodePos;

BOOL b9DigitOnly;

} TAddressAttributes;

typedef TAddressAttributes * PAddressAttributes;

Pascal definition:

TAddressAttributes = Record

TextInfo : PTextBlockAttributes;

BarCodePos : Integer;

b9DigitOnly : BOOL;

End;

PAddressAttributes = ^TAddressAttributes;

Where:

TextInfo Points to a TextBlockAttributes structure from which text specific attributes can be read or written. If this entry is null, then the text remains unchanged.

BarCodePos Sets the position of the POSTNET bar code. It can be one of:

0 = Suppress POSTNET printing for this object

1 = Print POSTNET above the address

2 = Print POSTNET below the address

b9DigitOnly If TRUE, then POSTNET bar codes will only be printed for addresses with full 9 digit (ZIP+4) codes. If False, then 5-digit POSTNET bar codes will be printed.

TTextAttributes

This structure is used for setting or retrieving information about a Text object:

C definition:

typedef struct tagTTextAttributes {

PTextBlockAttributes TextInfo;

BOOL bVariable;

} TTextAttributes;

typedef TTextAttributes * PTextAttributes;

Pascal definition:

TTextAttributes = Record

TextInfo : PTextBlockAttributes;

bVariable : BOOL;

End;

PTextAttributes = ^TTextAttributes;

Where:

TextInfo Points to a TextBlockAttributes structure from which text specific attributes can be read or written. If this entry is null, then the text remains unchanged.

bVariable If TRUE, then this object may be pasted into. Otherwise, the text may only be changed by a Get/Set call.

TGraphicAttributes

This structure is used for setting or retrieving information about a Graphic object:

C definition:

typedef struct tagTGraphicAttributes {

int GraphicSource;

char FileName[260];

HANDLE Picture;

HPALETTE Palette;

HWND Window;

int Border;

COLORREF BorderColor;

} TGraphicAttributes;

typedef TGraphicAttributes * PGraphicAttributes;

Pascal definition:

TGraphicAttributes = Record

GraphicSource : Integer;

FileName : Array[0..259] of char;

Picture : THANDLE;

Palette: HPALETTE;

Window : HWND;

Border : Integer;

BorderColor : COLORREF;

End;

PGraphicAttributes = ^TGraphicAttributes;

Where:

GraphicSource Is used to specify the type of bitmap being passed to, or returned from the object. Possible values include:

0 = Source image is a file on disk. FileName has the full path to the file.

1 = Source image is a bitmap or metafile whose handle is in the Picture field. If Picture corresponds to a bitmap (GetObjectType(Picture) = OBJ_BITMAP) then Palette represents the palette of the bitmap. If the object type is a metafile, then Palette is undefined.

2 = Source image is to be captured from the Window whose handle is contained in Window. (Valid only on Setting the attributes for the object. Once captured, the image information is returned as a bitmap handle in the Picture field.)

3 = Source image is in Clipboard. (Valid only on Setting the attributes for the object. Once captured, the image information is returned as a bitmap (or metafile) handle in the Picture field.)

FileName When the image source is a file, this field contains the name of the file represented by the graphic object. Supported file types include:

Windows Bitmap, Windows Metafiles, Enhanced Windows Metafiles, PCX, PNG, TIF, and JPG.

Picture When the image is not from a file, contains the handle of the bitmap or metafile to be displayed (on input), or being displayed (on output).

Palette Contains the handle of the bitmap palette. If 0, then the system palette will be used. When returning attribute information, Attribute represents the palette of the bitmap if Picture represents a bitmap handle. If Picture represents a metafile handle, then this is undefined on output.

Window Valid on input only. This contains the handle of a window whose image is to be captured.

Border This is used to set the type of border that is drawn around the graphic. Possible values include:

0 = No Border

1 = Thin Border

2 = Thick Border

BorderColor Defines the color of the border to be drawn around the graphic. If Border = 0 then this setting is not used.

TLineAttributes

This structure is used for setting or retrieving information about a Line object:

C definition:

typedef struct tagTLineAttributes {

int Length;

int Orient;

int Thickness;

COLORREF LineColor;

} TLineAttributes;

typedef TLineAttributes * PLineAttributes;

Pascal definition:

TLineAttributes = Record

Length : Integer;

Orient : Integer;

Thickness : Integer;

LineColor : COLORREF;

End;

PLineAttributes = ^TLineAttributes;

Where:

Length Represents the length of the line, in TWIPS

Orient Represents the orientation of the line, where:

0 = Horizontal Line

1 = Vertical Line

Thickness Represents the thickness of the line, where:

Value	Description	Width (in TWIPS)
0	No Line	0
1	Thin line	15
2	Medium-Thin	30
3	Medium Line	45
4	Medium-Thick	80
5	Thick Line	115

LineColor Provides the color of the line.

TRectAttributes

This structure is used for setting or retrieving information about a Rectangle object:

C definition:

typedef struct tagTRectAttributes {

BOOL bFilled;

int Border;

COLORREF BorderColor;

COLORREF FillColor;

} TRectAttributes;

typedef TRectAttributes * PRectAttributes;

Pascal definition:

TRectAttributes = Record

bFilled : BOOL;

Border : Integer;

BorderColor : COLORREF;

FillColor : COLORREF;

End;

PRectAttributes = ^TRectAttributes;

Where:

bFilled If TRUE, then the rectangle will be drawn as a solid, black rectangle. Otherwise, it sill simple be a rectangle with the specified border.

Border This is used to set the type of border that is drawn around the rectangle. Possible values include:

0 = No Border

1 = Thin Border

2 = Thick Border

BorderColor The color of the border (if any).

FillColor The color to use to fill the interior of the rectangle.

TCounterAttributes

This structure is used for setting or retrieving information about a Counter object

C definition:

typedef struct tagTCounterAttributes {

PTextBlockAttributes TextInfo;

char PreText[32];

char PostText[32];

int Start;

int Current;

int Width;

int Increment;

BOOL bLeadingZeros;

} TCounterAttributes;

typedef TCounterAttributes * PCounterAttributes;

Pascal definition:

TCounterAttributes = Record

TextInfo : PTextBlockAttributes;

PreText : Array[0..31] of char;

PostText : Array[0..31] of char;

Start : Integer;

Current : Integer;

Width : Integer;

Increment : Integer;

bLeadingZeros : BOOL;

End;

PCounterAttributes = ^TCounterAttributes;

Where:

TextInfo Points to a TextBlockAttributes structure from which text specific attributes can be read or written. If this entry is null, then the text remains unchanged.

PreText Specifies any text to appear before the counter value. This is a null terminated string of up to 31 characters in length.

PostText Specifies any text to appear after the counter value. This is a null terminated string of up to 31 characters in length.

Start This is the value the counter starts counting from.

Current This is the current value of the counter. It is incremented each time the label is printed.

Width Specifies the minimum width to format the counter to.

Increment This value specifies the amount to increment the Current value by after each label is printed. To count down, this value should be negative.

bLeadingZeros If TRUE, then the value is printed with leading zeros added to pad the width out to Width. Otherwise, no padding is used.

TDateTimeAttributes

This structure is used for setting or retrieving information about a Date/Time object:

C definition:

typedef struct tagTDateTimeAttributes {

PTextBlockAttributes TextInfo;

char PreText[32];

char PostText[32];

int DateFormat;

BOOL bIncludeTime;

BOOL b24Hour;

} TDateTimeAttributes;

typedef TDateTimeAttributes * PDateTimeAttributes;

Pascal definition:

TDateTimeAttributes = Record

TextInfo : PTextBlockAttributes;

PreText : Array[0..31] of char;

PostText : Array[0..31] of char;

DateFormat : Integer;

bIncludeTime : BOOL;

b24Hour : BOOL;

End;

PDateTimeAttributes = ^TDateTimeAttributes;

Where:

TextInfo Points to a TextBlockAttributes structure from which text specific attributes can be read or written. If this entry is null, then the text remains unchanged.

PreText Specifies any text to appear before the Date-Time value. This is a null terminated string of up to 31 characters in length.

PostText Specifies any text to appear after the Date-Time value. This is a null terminated string of up to 31 characters in length.

DateFormat Specifies the format to be used for the date and time. Available choices include both US, and international standards. Possible values for DateFormat include:

Value	Sample
0	Blank
1	Friday, February 6, 1998
2	Friday, 6 February, 1998
3	February 6, 1998
4	6 February, 1998
5	2/6/1998
6	6/2/1998
7	2/6/98
8	6/2/98
9	2.6.98
10	6.2.98
11	1998-02-06
12	1998-06-02
13	6-Feb-98
14	Feb 6, 1998

bIncludeTime If TRUE, then the time will be added after the date. If False, then only the date will be printed.

b24Hour If TRUE, then the time will be printed as 24-hour time (0-23), otherwise, it will be printed as 12 hour (1-12) time.

TBarcodeAttributes

This structure is used for setting or retrieving information about a Bar Code object:

C definition:

typedef struct tagTBarcodeAttributes {

char Text[256];

char Font[64];

int HRTextPos;

int BCType;

int BCRatio;

int Justify;

TObjectID Link;

} TBarcodeAttributes;

typedef TBarcodeAttributes * PBarcodeAttributes;

Pascal definition:

TBarcodeAttributes = Record

Text : Array[0..255] of char;

Font : Array[0..63] of char;

HRTextPos : Integer;

BCType : Integer;

BCRatio : Integer

Justify : Integer;

Link : TObjectID;

End;

PBarcodeAttributes = ^TBarcodeAttributes;

Where:

Text Provides the data to be formatted. This can be up to 255 characters in length, and is passed as a null terminated string.

Font A null terminated string that represents the font to be used for the Human readable text. For format information, see the Font1 description for the TextBlockAttributes structure.

HRTextPos The position where the Human Readable text is to be printed. Possible values include:

0 = No text printed

1 = Above the bar code

2 = Below the bar code

BCType Gives the type of bar code to be printed. Supported types include:

Value	Bar Code Symbology
0	Code 39 (Code 3 of 9)
1	Code 39 w/Mod 43 Checksum
2	Code 128 Auto
3	Code 128A
4	Code 128B
5	Code 128C
6	Code 2 of 5
7	UPC A
8	UPC E
9	EAN 8
10	EAN 13
11	Codabar
12	POSTNET
13	Code 39 Library Version L – R Checksum
14	Code 39 Library Version R – L Checksum
15	Codabar Library Version L – R Checksum
16	Codabar Library Version R – L Checksum
17	ITF-14
18	EAN-128

BCRatio Sets the size of the bar code to be printed. The library supports three sizes, and they may be selected as follows:

0 = Small

1 = Medium

2 = Large

Justify Sets the horizontal justification of the bar code within its object bounds. It can be any of:

0 = Left Justify

1 = Center Justify

2 = Right Justify

Link If null, then the data represented is from the Text field of the bar code object. If not null, then it must be an object handle for a Text, Address, or Counter object.

The DLL Functions

Following is a list of the DLL function calls. For each function, the prototypes are given in both C, and Pascal. In all cases, the C version is listed first, and the Pascal version appears second.

BOOL WINAPI ReadLabelFile(LPCSTR FileName);

Function ReadLabelFile(FileName : PChar) : BOOL; stdcall;

Clears any existing label file from memory and reads a new label definition from the file name.

FileName A pointer to the filename to be read. This is the full file name, with drive and path information. If there is no drive or path included, it will try to open the file in the current directory.

Returns: True on success, False if file could not be read, or the file was not a valid label file.

BOOL WINAPI WriteLabelFile(LPCSTR FileName);

Function WriteLabelFile(FileName : PChar) : BOOL; stdcall;

Saves the current label using the passed filename. If the file already exists, it is overwritten.

FileName A pointer to the filename to be written. This is the full file name, with drive and path information. If there is no drive or path included, it will try to save the file in the current directory.

Returns: True on success, False if file could not be written.

BOOL WINAPI PrintLabel(LPCSTR DeviceName, LPCSTR Port, int Quantity, BOOL bShowDialog);

Function PrintLabel(DeviceName : PChar; Port : PChar; Quantity : Integer; ShowDialog : BOOL) : Bool; stdcall;

Prints the current label on the given output device.

DeviceName Specifies the device to be printed on. E.G. “CoStar LabelWriter XL Plus”.

Port Specifies the Port to print to. If null, then the port will be taken from Windows. If not null, then the output will be forced to the passed port. To print to file, use ‘File:’.

Quantity Specifies the number of labels to be printed. The maximum valid value is 2,147,483,647.

bShowDialog If TRUE, then the printer progress dialog will be displayed when printing. If FALSE, then no dialog will be displayed.

Returns: True on success, False if file could not be written.

BOOL WINAPI Output(HDC hDC);

Function Output(DC: HDC) : BOOL; stdcall;

Similar to PrintLabel, but does no BeginDoc/EndDoc, and simply prints to the specified device context. This function can be used by developers trying to mix their output with ours. For instance, a developer with the need to print a label with a MaxiCode bar code may use another DLL to print the MaxiCode bar code, and then call this function to print everything else. Because this function is limited to outputting to an existing print job, it uses a device context as its only parameter.

hDC The device context to output on.

Returns: True on success, False if file could not be written.

BOOL WINAPI OutputXY(int X, int Y, HDC hDC);

Function OutputXY(X,Y : Integer; DC : HDC) : BOOL; stdcall;

This is the same as Output(), but provides an offset (in TWIPS) that can be used to move the label origin on the page. Using this function, an application can use the DLL to print on a laser label sheet, by calling it once for every label on the page, passing the X and Y co-ordinates of the upper left corner of the label being printed.

X Offset from left edge of paper to starting label position, in TWIPS.

Y Offset from top edge of paper to starting label position, in TWIPS.

hDC The device context to output on.

Returns: True on success, False if file could not be written.

void WINAPI DrawLabel(HDC hDC);

Procedure DrawLabel(DC: HDC); stdcall;

Draws the current label design on the passed device context using the current Zoom setting.

hDC The device context to output on.

void WINAPI SetZoom(int Percent);

Procedure SetZoom(Percent : Integer); stdcall;

Set the zooming factor for DrawLabel() commands. Zoom is a scaling factor (in percent) to apply when doing the drawing. If <> 100, the function will change the scale the drawing to the specified size. The Device Context is pushed and popped around the call to preserve the current DC settings.

Percent The percentage of actual size to render the label when DrawLabel is next called. This value is ignored if it is less than 20 or greater than 400.

void WINAPI SetShadow(BOOL State);

Procedure SetShadow(State : BOOL); stdcall;

Turns the display of the shadow on and off. After calling this function, the DLL will modify the Label bitmap, so you must call GetLabelInfo to retrieve the new size of the Bitmap.

State If TRUE, then labels are drawn with shadows. If FALSE, then no shadow is drawn.

void WINAPI GetLabelInfo(PLABELINFO LabelInfo);

Procedure GetLabelInfo(LabelInfo : PLABELINFO); stdcall;

Fills in a TLabelInfo structure with information about the current label.

LblInfo Points to the TLabelInfo structure to be filled in.

If LabelInfo is an invalid pointer, this call is ignored.

int WINAPI GetLabelNames(char * Buf, int nBytes);

Function GetLabelNames(Buf : PChar; nBytes : Integer) : Integer; stdcall;

Fills in a buffer with the names of all Label Paper Names. The buffer is returned as a series of 64 byte blocks of null terminated label names, with the last block being followed by a second null.

Buf Points to the memory block to be filled in with the label names.

nSize Specifies the size of the buffer (in bytes).

Returns: If the buffer is too small, the function returns the number of bytes required. Otherwise, it will fill the buffer with the names of the labels and return a 1. Returns 0 if Buf is invalid.

void WINAPI NewLabel(LPCSTR Name);

Procedure NewLabel(Name : PChar); stdcall;

Clears any existing label design from memory and creates a new label based on the supplied Name.

Name Points to a null-terminated string specifying a valid label name, as returned in the GetLabelNames call.

BOOL WINAPI IsModified(void);

Function IsModified : BOOL; stdcall;

Used to determine if a design has been modified without being saved to disk.

Returns: TRUE if the current label design has been modified, but not written to disk, FALSE otherwise.

BOOL WINAPI SetModified(BOOL State);

Function SetModified(State : BOOL) : BOOL; stdcall;

This function is used to set or clear the current label’s “modified” flag.

State If TRUE, then the label will be marked as having been changed. If FALSE, then the label will be marked as being un-changed from what was read from disk.

Returns: Previous state of the modified flag.

HANDLE WINAPI AddObject(LPCSTR ObjType, LPCSTR ObjName, RECT Size, int Rotation, void * Attrib);

Function AddObject(ObjType, ObjName : PChar; Size: TRect; Rotation : Integer; Attrib : Pointer) : THandle; stdcall;

Adds a new object to the label design.

ObjType Points to a null-terminated string that gives the type of object to be created. Valid values include:

TEXT

ADDRESS

GRAPHIC

RECTANGLE

LINE

BARCODE

COUNTER

DATE-TIME

ObjName Points to a null-terminated string that provides the name to give the object (e.g. ‘Return Address’ or ‘Part Number’). The object’s name is only provided as a way of differentiating between objects of the same type.

Size Specifies a Rect that provides the left edge (Rect.Left), top (Rect.Top), width (Rect.Right), and height (Rect.Bottom) of the object to be created. All units are in TWIPS, and relative to the upper left corner of the label. Rect.Left and Rect.Top have a minimum value of 0. Width and height (Rect.Right and Rect.Bottom have a minimum of 1 TWIP.

Rotate Specifies the type of rotation to apply to the object (0, 90, 180, or 270 degrees).

Attributes Points to an object specific attribute structure (e.g. TAddressAttributes, TLineAttributes, TBarCodeAttributes, etc…)

Returns: A handle (TObjectID) to the new object.

int WINAPI EnumLabelObjects(char *Buf, int nBytes);

Function EnumLabelObjects(Buf : PChar; nBytes : Integer) : Integer; stdcall;

Fills a buffer with TObjectInfo structures, one for each object on the current label. This may be used to get a list of all objects on a label.

Buf Points to the memory block to be filled in with ObjInfo structures.

nSize Specifies the size of the buffer (in bytes).

Returns: If the buffer is too small, the function returns the number of bytes required. Otherwise, it will fill the buffer with an array of ObjInfo structures and return a 1. If the buffer pointer is invalid, it will return 0.

It is recommended that this function first be called with Buf = nil, and nSize = 0. This will return the minimum size of the buffer to be allocated.

int WINAPI EnumVariableObjects(char *Buf, int nBytes);

Function EnumVariableObjects (Buf : PChar; nBytes : Integer) : Integer; stdcall;

Similar to EnumLabelObjects(), but ignores non-variable objects. Fills a buffer with TObjectInfo structures, one for each variable object on the current label. This may be used to get a list of all variable objects on a label. A variable object is defined to be:

· Any Address object

· Text objects with bVariable = TRUE

· Bar code objects with link = nil

Buf Points to the memory block to be filled in with ObjInfo structures.

nSize Specifies the size of the buffer (in bytes).

It is recommended that this function first be called with Buf = nil, and nSize = 0. This will return the minimum size of the buffer to be allocated.

TObjectID WINAPI WhichObject(int X, int Y);

Function WhichObject(X,Y : Integer) : TObjectID; stdcall;

Reports which object is the top-most object at a given location on the label.

X, Y Specifies the X and Y coordinates (in TWIPS), for the point being checked.

Returns: The ID of the top-most object at the given point, or NULL, if no object surrounds the point.

int WINAPI ObjectsAt(int X, int Y, char * Buf, int nBytes);

Function ObjectsAt(X,Y : Integer; Buf : PChar; nBytes : Integer) : Integer; stdcall;

Fills an array of TObjectInfo structures for all objects on the current label that contains a given point.

X, Y Specifies the X and Y coordinates (in TWIPS), for the point being checked.

Buf Points to the memory block to be filled in with the TObjectInfo structures.

nBytes Specifies the size of the buffer (in bytes).

Returns: If the buffer is too small, the function returns the number of bytes required. Otherwise, it will fill the buffer with a series of TObjectInfo structures and return a 1. Returns 0 if the buffer pointer is invalid, or –1 if no objects exist at the provided X, Y coordinates.

It is recommended that this function first be called with Buf = nil, and nSize = 0. This will return the minimum size of the buffer to be allocated.

int WINAPI ValidateBarCode(char *Text, int BCType)

Function ValidateBarCode(Text : PChar; BCType : Integer) : Integer; stdcall;

Used to determine if a text string can be represented in a particular bar code symbology.

Text The text to be bar coded.

BCType The symbology to be used. (See description of BarcodeAttributes for allowed values).

Returns: Returns 0 if the text can be represented by using the given symbology. Possible return codes include:

0	No error
1	Invalid character in text.
2	Text too long to for symbology.
3	Unsupported bar code type.
4	Bar code must contain digits only.
5	Bar code requires an even number of characters.
6	Bar code can not encode characters < ASCII Space.
7	No lower case characters allowed.
8	Bar code can not encode characters > 0x80.
9	First/Last characters not valid for symbology.
10	Text must be 5, 9, or 11 characters long.
11	Library bar codes must be 12 or 13 characters.

BOOL WINAPI CopyToClipboard (POBJECTID Buf);

Function CopyToClipboard(Buf : PObjectID) : Boolean; stdcall;

Copies a list of objects to the clipboard using the registered clipboard format “LabelObject”.

Buf A null terminated list of ID’s identifying the objects to be copied to the clipboard. The last object ID is followed by a null.

Returns: True if the copy was successful, else False.

BOOL WINAPI PasteFromClipboard(void);

Function PasteFromClipboard : Boolean; stdcall;

Pastes all objects in the clipboard onto the current label.

Returns: True if the paste was successful. If the clipboard does not have any objects with the registered clipboard format “LabelObject,” it will return False.

TObjectID WINAPI FindObject(char * Name);

Function FindObject(Name :PChar) : TObjectID; stdcall;

Name Identifies an object to be found.

Returns: The ID of the object with the given name. If there is no object by the given name on the label, returns 0.

BOOL WINAPI DeleteLabelObject(TObjectID ID);

Function DeleteLabelObject(ID : TObjectID) : BOOL; stdcall;

Deletes an object from a label design.

ID Specifies the ID of the object to be deleted.

Returns: True on success, False if an object with the specified id could not be found.

BOOL WINAPI BringObjectToFront(TObjectID ID);

Function BringObjectToFront(ID : TobjectID) : BOOL; stdcall;

Reorganizes the label so that the specified object is the top-most object on the label.

ID Specifies the ID of the object to be moved.

Returns: True on success, False if an object with the specified id could not be found.

BOOL WINAPI SendObjectToBack(TObjectID ID);

Function SendObjectToBack(ID : TObjectID) : BOOL; stdcall;

Reorganizes the label so that the specified object is the bottom-most object on the label.

ID Specifies the ID of the object to be moved.

Returns: True on success, False if an object with the specified id could not be found.

BOOL WINAPI SetAttributes(TObjectID ID, void * Attrib);

Function SetAttributes(ID : TObjectID; Attrib : Pointer) : BOOL; stdcall;

This function is used to sets the attributes for the specified object. It may be used to change the data (text, bar code data, graphic, etc), as well as it’s format (font, justification, text location, date format, etc.).

ID Specifies the ID of the object to be moved.

Attrib Points to an object-type specific attribute structure from which the object’s new settings will be taken.

Returns: True on success, False if an object with the specified id could not be found.

int WINAPI GetAttributes(TObjectID ID, void * Attrib);

Function GetAttributes(ID : TObjectID; Attrib : Pointer) : Integer; stdcall;

Retrieves the current object attributes for the specified object.

ID Specifies the ID of the object to be moved.

Attrib Points to an object-type specific attribute structure from which the object’s new settings will be taken.

Returns: If Attrib = NULL, then returns the size of the memory block required for the Text in the specified object. Otherwise, it returns True on success, False if an object with the specified id could not be found, or Attrib was invalid.

Note: If ID references a Text or Address object, and Attributes is NULL, then the function will return the amount of storage (in bytes) that must be allocated for the Text member pointer in the TTextBlockAttributes portion of the objects attribute structure.

To retrieve the text from an Address or Text object:

1. Call GetAttributes() passing a null for the Attributes pointer. This will return the amount of memory to allocate to hold the text.

2. Allocate the memory required, and put a pointer to the memory in TextBlockAttributes.Text.

3. Fill in a TTextAttributes (or TAddressAttributes) with a reference to the TTextBlockAttributes structure.

4. Call GetAttributes() with a pointer to the TTextAttributes (or TAddressAttributes) structure to retrieve the information.

BOOL WINAPI GetInfo(POBJECTINFO ObjectInfo);

Function GetInfo(ObjectInfo : POBJECTINFO) : BOOL; stdcall;

Finds the object with the ObjID passed in the TObjectInfo structure, and fills in the rest of the fields of the TObjectInfo structure with information about the object.

ObjectInfo Points to a TObjectInfo structure in which the ObjID field has been set to the handle of an object to be queried.

Returns: True on success, False if an object with the specified id could not be found or the pointer was invalid.

BOOL WINAPI SetInfo(POBJECTINFO ObjectInfo);

Function SetInfo(ObjectInfo : POBJECTINFO) : BOOL; stdcall;

Finds the object with the ID passed in TObjectInfo structure, and sets the object name, size, position, and rotation angle based on the other fields in the structure.

ObjectInfo Points to a TObjectInfo structure in which the ObjID field has been set to the handle of an object to be modified, and the name, size, and rotation information in the TObjectInfo structure has the new settings.

Returns: True on success, False if an object with the specified id could not be found or the pointer was invalid.

If the object name passed in the structure is not the same as the current name of the object, and there is already an object by the same name on the label, the name will not be changed. If name is null, then just the size and rotation setting will be modified.

BOOL WINAPI GetLabelMargins(RECT *pRect);

Function GetLabelMargins(Rect :PRECT) : BOOL; stdcall;

Returns the widths of the unprintable margins, in TWIPS, for the currently selected paper type.

void WINAPI SetPrinterModeState(BOOL State);

Procedure SetPrinterModeState (State : BOOL); stdcall;

This enables (State= TRUE) or disables (State = FALSE) the automatic switching to Barcode and Graphics mode when printing labels with non-monochrome bitmaps and/or barcodes that are set to small or medium size.

Entry	Purpose	Expressed in (Dimensions)
Narrow Space	Sets width of narrow spaces	Thousandths of an inch
Wide Space	Sets width of wide spaces	Thousandths of an inch
Narrow Bar	Sets width of narrow bars	Thousandths of an inch
Wide Bar	Sets width of wide bars	Thousandths of an inch
Bar Code Compensation	Compensates for thermal blooming of bars	Bit field (see below)

Low-level functionality

Using DDE With DLS

Appendix A Licensing and Distribution

Licensing Grants and Restrictions

Appendix A
Licensing and Distribution
